| Configuration | Number of Packs | Maximum Safe Platform Height | Working Height |
|---|---|---|---|
| Single Height | 1x Core Pack | 0.9m | 2.4 - 2.7m |
| 2-High Configuration | 1x Core pack 1x Riser Pack | 2.1m | 3.6 - 3.9m |

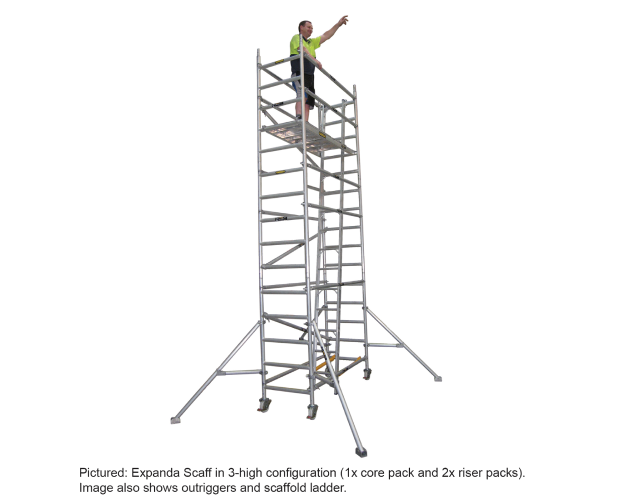

| 3-High Configuration | 1x Core Pack 2x Riser Packs | 3.7m | 5.2 - 5.5m |
The Gorilla Expanda Scaff has been specially designed by one of Australia’s leading scaffolding companies (No Bolt) to incorporate strength, durability and most importantly flexibility. The Expanda Scaff incorporates a unique design that allows you to expand up and out by adding additional free standing core packs, making it incredibly versatile.
| Item Code | Description | Content of Pack / Information |
|---|---|---|
| GS-01 | Core Pack | 4x horizontals 1x diagonal brace 2x end frames 1x platform with trapdoor 4x 150mm locking castors |
| GS-01A | Riser Pack | 4x horizontals 1x diagonal brace 2x end frames |
| GS-02 | Outrigger Pack | 4x outrigger braces Required when scaffold is higher than single level |
| GS-03 | Joiner Pack | 1x joiner plank 4x joiner clamps Required to join scaffold packs side by side |
| GS-KICKB | Kick Boards | Set of 4 timber kickboards Fits around a single platform Required when platform is located 2m or higher |
| ASL-009-1 | 2.7m Scaffold Ladder | 1x 2.7m straight ladder 2x scaffold hooks Suits 2-high configuration |
| ASL-015-1 | 4.6m Scaffold Ladder | 1x 4.6m straight ladder 2x scaffold hooks Suits 3-high configuration |
| Configuration | Number of Packs | Maximum Safe Platform Height | Working Height |
|---|---|---|---|
| Single Height | 1x Core Pack | 0.9m | 2.4 - 2.7m |
| 2-High Configuration | 1x Core pack 1x Riser Pack | 2.1m | 3.6 - 3.9m |
| 3-High Configuration | 1x Core Pack 2x Riser Packs | 3.7m | 5.2 - 5.5m |
| Item Code | Description | Content of Pack / Information |
|---|---|---|
| GS-01 | Core Pack | 4x horizontals 1x diagonal brace 2x end frames 1x platform with trapdoor 4x 150mm locking castors |
| GS-01A | Riser Pack | 4x horizontals 1x diagonal brace 2x end frames |
| GS-02 | Outrigger Pack | 4x outrigger braces Required when scaffold is higher than single level |
| GS-03 | Joiner Pack | 1x joiner plank 4x joiner clamps Required to join scaffold packs side by side |
| GS-KICKB | Kick Boards | Set of 4 timber kickboards Fits around a single platform Required when platform is located 2m or higher |
| ASL-009-1 | 2.7m Scaffold Ladder | 1x 2.7m straight ladder 2x scaffold hooks Suits 2-high configuration |
| ASL-015-1 | 4.6m Scaffold Ladder | 1x 4.6m straight ladder 2x scaffold hooks Suits 3-high configuration |
