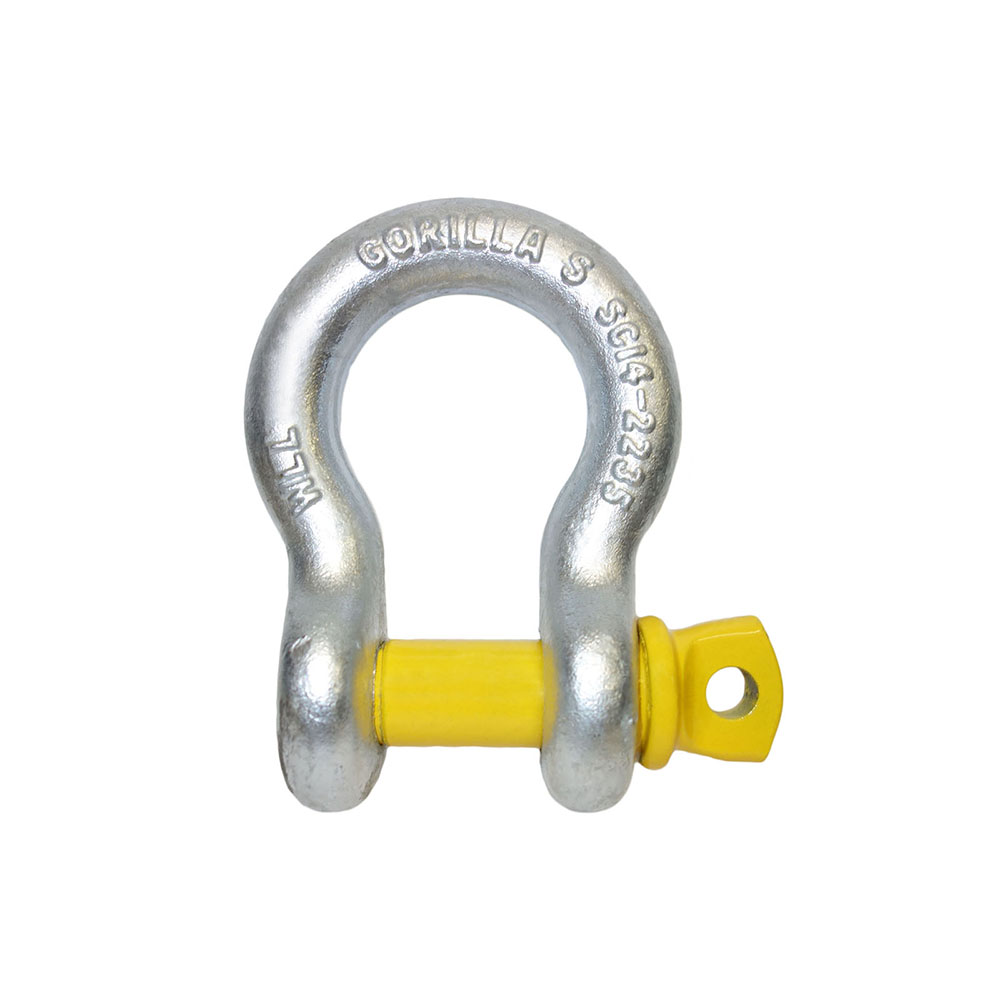

Grade ‘S’ Bow Shackles

a

$1

  • Screw pin bow shackle
  • Suitable for lifting and towing applications
  • Every shackle stamped with WLL and batch number
ModelNominal SizeWorking Load Limit (WLL)

GOR-SH-S05

5mm (3/16")

0.33 Tonne

GOR-SH-S06

6mm (1/4")

0.5 Tonne

GOR-SH-S08

8mm (5/16")

0.75 Tonne

GOR-SH-S10

10mm (3/8")

1 Tonne

GOR-SH-S11

11mm (7/16")

1.5 Tonne

GOR-SH-S13

13mm (1/2")

2 Tonne

GOR-SH-S16

16mm (5/8")

3.25 Tonne

GOR-SH-S19

19mm (3/4")

4.75 Tonne

GOR-SH-S22

22mm (7/8")

6.5 Tonne

GOR-SH-S25

25mm (1")

8.5 Tonne

Model

GOR-SH-S05

Nominal Size

5mm (3/16")

Working Load Limit (WLL)

0.33 Tonne

Model

GOR-SH-S06

Nominal Size

6mm (1/4")

Working Load Limit (WLL)

0.5 Tonne

Model

GOR-SH-S08

Nominal Size

8mm (5/16")

Working Load Limit (WLL)

0.75 Tonne

Model

GOR-SH-S10

Nominal Size

10mm (3/8")

Working Load Limit (WLL)

1 Tonne

Model

GOR-SH-S11

Nominal Size

11mm (7/16")

Working Load Limit (WLL)

1.5 Tonne

Model

GOR-SH-S13

Nominal Size

13mm (1/2")

Working Load Limit (WLL)

2 Tonne

Model

GOR-SH-S16

Nominal Size

16mm (5/8")

Working Load Limit (WLL)

3.25 Tonne

Model

GOR-SH-S19

Nominal Size

19mm (3/4")

Working Load Limit (WLL)

4.75 Tonne

Model

GOR-SH-S22

Nominal Size

22mm (7/8")

Working Load Limit (WLL)

6.5 Tonne

Model

GOR-SH-S25

Nominal Size

25mm (1")

Working Load Limit (WLL)

8.5 Tonne

SKU: N/A Categories: ,
download specification Available at bunnings
