Gorilla Uni-Props

a

$1

The Gorilla Uni-Prop range are traditional formwork props with an option to use a hydraulic power pack to deliver safe and controlled power to make setup simple. Gorilla Uni-Prop formwork props can be used with or without the hydraulic pack.

Note: the hydraulic pack is only suitable for use with the Gorilla Uni-Prop formwork props

  • Complies with AS3610
  • 150x150mm base plates
  • Laser cut ram access chamber
  • Laser cut ram movement slot
  • Powder coated finish
  • Welded ram locator boss
  • Compatible with all standard formwork prop accessories

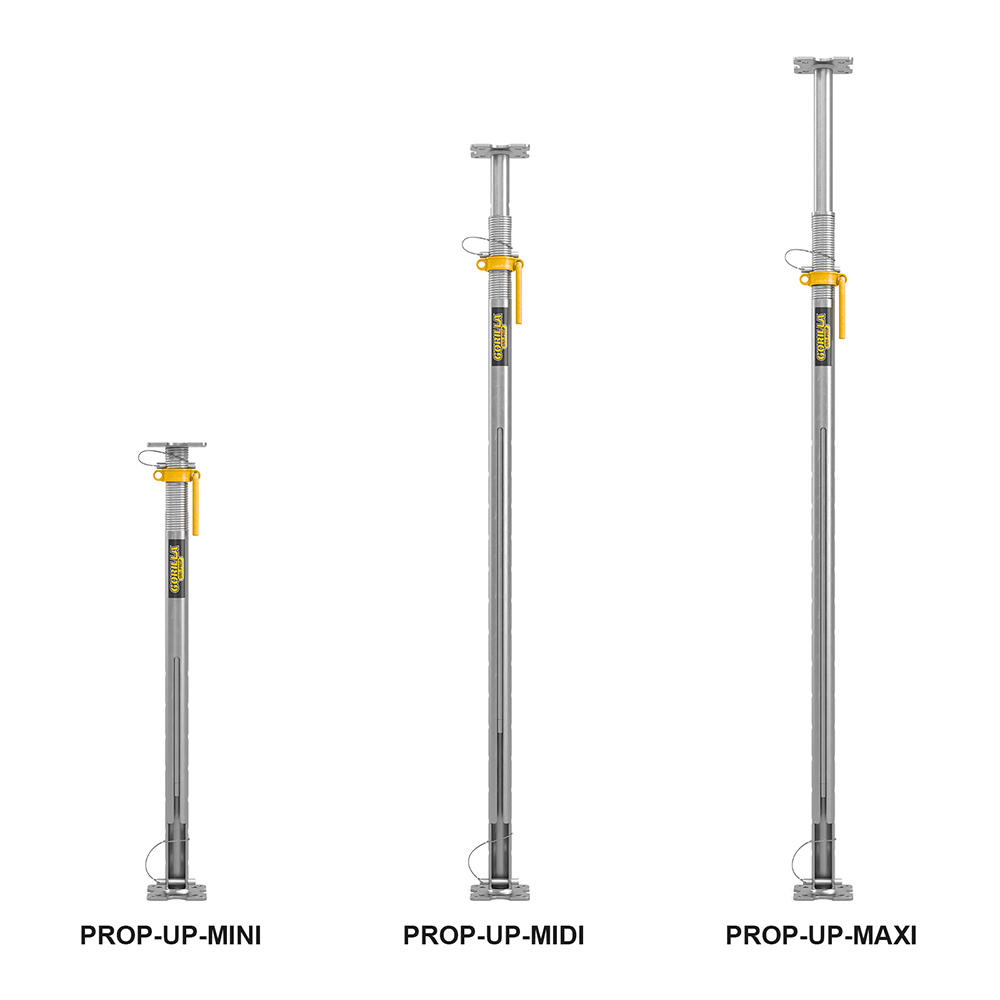

ModelHeightSWL (Hydraulic)SWL (Mechanical)
PROP-UP-MINIClosed: 1140mmMax. 2000kg / 20.0kNMax. 3930kg / 39.3kN
Open: 1780mmMax. 2000kg / 20.0kNMax. 2010kg / 20.1kN
PROP-UP-MIDIClosed: 1725mmMax. 2000kg / 20.0kNMax. 3800kg / 38.0kN
Open: 2950mmMax. 1340kg / 13.4kNMax. 1340kg / 13.4kN
PROP-UP-MAXIClosed: 2105mmMax. 2000kg / 20.0kNMax. 2150kg / 21.5kN
Open: 3330mmMax. 1130kg / 11.3kNMax. 1130kg / 11.3kN
PROP-UP-HA20Hydraulic AssembyMax. Capacity de-rated to 2000kg Max. Capacity de-rated to 2000kg

Model

PROP-UP-MINI

Height

Closed: 1140mm

Open: 1780mm

SWL (Hydraulic)

Max. 2000kg / 20.0kN

SWL (Mechanical)

Max. 3930kg / 39.3kN

Max. 2010kg / 20.1kN

Model

PROP-UP-MIDI

Height

Closed: 1725mm

Open: 2950mm

SWL (Hydraulic)

Max. 2000kg / 20.0kN

Max. 1340kg / 13.4kN

SWL (Mechanical)

Max. 3800kg / 38.0kN

Max. 1340kg / 13.4kN

Model

PROP-UP-MAXI

Height

Closed: 2105mm

Open: 3330mm

SWL (Hydraulic)

Max. 2000kg / 20.0kN

Max. 1130kg / 11.3kN

SWL (Mechanical)

Max. 2150kg / 21.5kN

Max. 1130kg / 11.3kN

Model

PROP-UP-HA20

Height

Hydraulic Assemby

SWL (Hydraulic)

Max. Capacity de-rated to 2000kg

SWL (Mechanical)

Max. Capacity de-rated to 2000kg

Safe Working Loads (SWL's) are only valid when Gorilla Uni-Props are set up and used correctly. Note: the hydraulic assembly is only suitable for use with Gorilla Uni-Prop formwork props.
